I Beam Shear Flow - Solved Example

From this example, you will understand how to calculate the moment of inertia of I-beam, Moment of Area, and Shear Flow.


Problem:

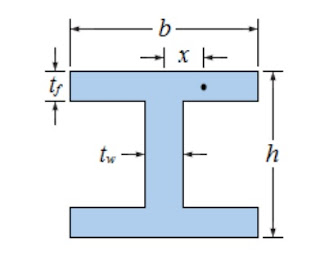

An I beam has a flange width b=400 mm, height h = 400 mm, web thickness tw = 13 mm, and flange thickness tf = 21 mm. Calculate the shear flow at a point shown, where x = 55 mm.

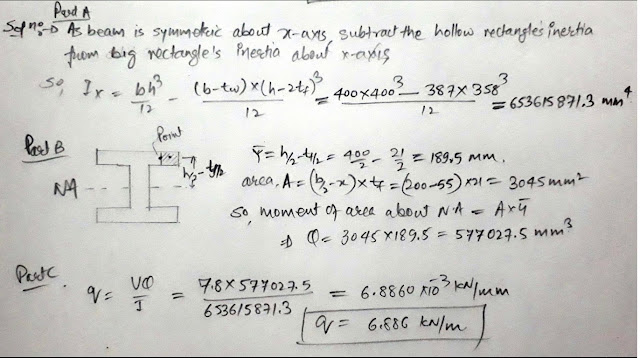

Solution:


 If you have any doubt, please comment below.
Thank you!
