How to Balance a Closed Traverse - Use of Compass(Bowditch) Rule - Solved Example

Hi,

Problem:
Following is the Field Data for a 4 sided, closed traverse, and you have to find the azimuth, bearings and corrected distances using Compass Rule or Bowditch Method.



Solution:

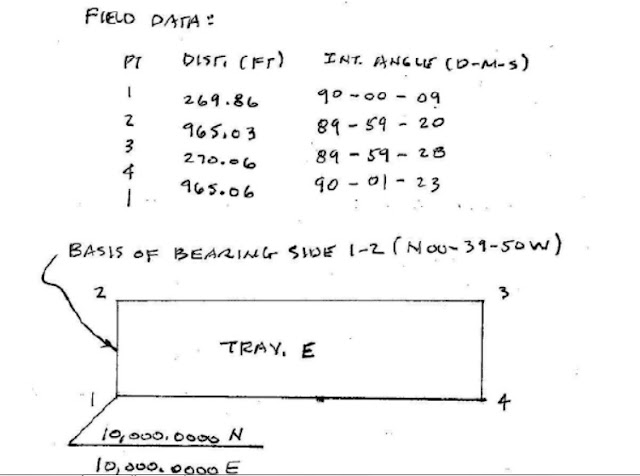

Download the image, solution is written for the angular closure, correction, azimuth, bearings, latitude and departure and corrected distance calculations.
